BOTTOM / HOOK ASSEMBLY

A lot of mechanical tools are required for various purposes like construction, shifting and movement of heavy articles etc. For these purposes, it is necessary that the instruments used for doing such kind of activities are safe and reliable. They need to be strong enough to carry out heavy tasks smoothly. And, thus, it should be made sure that all the heavy instruments that are purchased, are ordered from reliable and reputed makers. This is because their products are of strong quality, and are tested well enough to withstand outside forces.

One such reliable company is Bhagirath Heavy Transmission. They are the masters in the field of producing excellent quality material handling products. Since the products have to be strong enough to lift and move heavy articles, strong and sturdy raw materials are used in the making of the instruments. Bhagirath Heavy Transmission specializes in producing Bottom Hook Assemblies. Bottom hook assemblies are put to use in several instances wherein lifting of heavy articles and materials is required. They are made with strong raw materials to ensure that they can be put to use for multiple purposes.

The Bottom hook assembly manufactured, have high utility value and can be used for multiple tasks. The product is well known for its qualitative parameters. The main advantage of the item is that it is manufactured using sturdy materials having brilliant quality, which make the product to hold on and carry out heavy tasks smoothly and with ease. It also ensures that the item is long lasting. The item is produced with innovative methods which make it even more competitive. Creative and different methods are put into implementation while producing the Bottom hook assemblies which raise their quality and strength standards.

The item Bottom Hook Assembly comes in a varied range and different types. The common range is 0.5 mts to 100 mts. The item when made, is put into extremely hard instances of trial. This is done with every product only to make sure that it can survive through the tasks of heavy lifting. All these qualities make our products one of the most reliable. We also offer our customers excellent guidance to ensure that they receive the best services from us.


   • Range : 0.5 mt to 100 mt.
For any service requirements,Please contact our office with complete name plate details

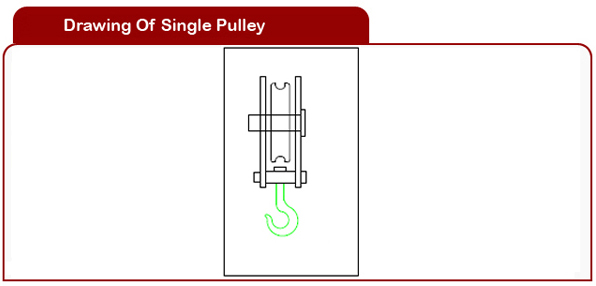

SINGLE PULLEY
MODEL SWL SUGGESTED ROPE PULLEY DIA. NO. OF
  MT DIA. (MM) (MM) FALLS
HA.5SP 0.5 6 P120 2
HA1SP 1 8 P150 2
HA1.5SP 1.5 8 P150 3
HA2SP 2 10 P180 2
HA3SP 3 12 P240 2

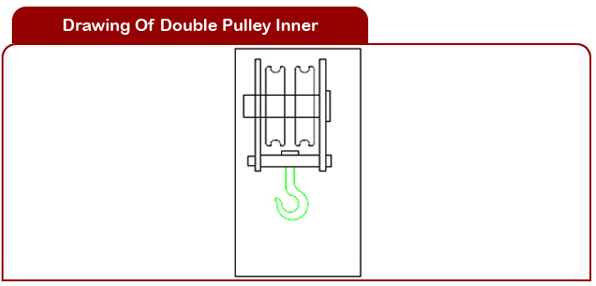

DOUBLE PULLEY - INNER
MODEL SWL SUGGESTED ROPE PULLEY DIA. NO. OF
  MT DIA. (MM) (MM) FALLS
HA1DP 1 6 P120 4
HA2DP 2 8 P150 4
HA3DP 3 10 P180 4
HA4DP 4 10 P180 4
HA5DP 5 12 P240 4
HA7.5DP 7.5 14 P280 4
HA10DP 10 16 P350 4
HA12.5DP 12.5 18 P350 4
HA15DP 15 20 P450 4
HA20DP 20 22 P450 4

DOUBLE PULLEY - OUTER
MODEL SWL SUGGESTED ROPE PULLEY DIA. NO.
OF
  MT DIA. (MM) (MM) FALLS
HA1ODP 1 6 P120 4
HA2ODP 2 8 P150 4
HA3ODP 3 10 P180 4
HA4ODP 4 10 P180 4
HA5ODP 5 12 P240 4
HA7.5ODP 7.5 14 P280 4
HA10ODP 10 16 P350 4
HA12.5ODP 12.5 18 P350 4
HA15ODP 15 20 P450 4
HA20ODP 20 22 P450 4

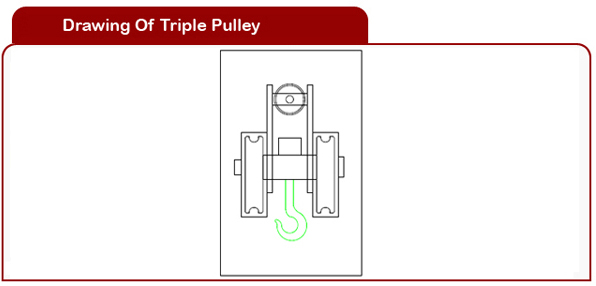

TRIPLE PULLEY
MODEL SWL SUGGESTED ROPE PULLEY DIA. NO. OF
  MT DIA. (MM) (MM) FALLS
HA15TP 15 16 P350 6
HA20TP 20 18 P350 6
HA25TP 25 20 P450 6
HA30TP 30 22 P450 6

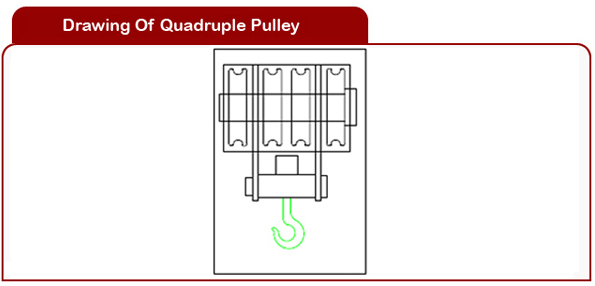

QUADRUPLE PULLEY
MODEL SWL SUGGESTED ROPE PULLEY DIA. NO. OF
  MT DIA. (MM) (MM) FALLS
HA20QP 20 16 P350 8
HA25QP 25 18 P350 8
HA30QP 30 20 P450 8
HA35QP 35 22 P450 8
HA40QP 40 24 P550 8
