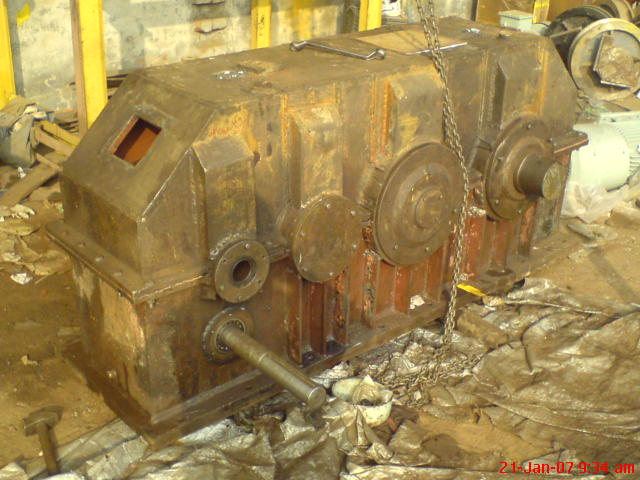

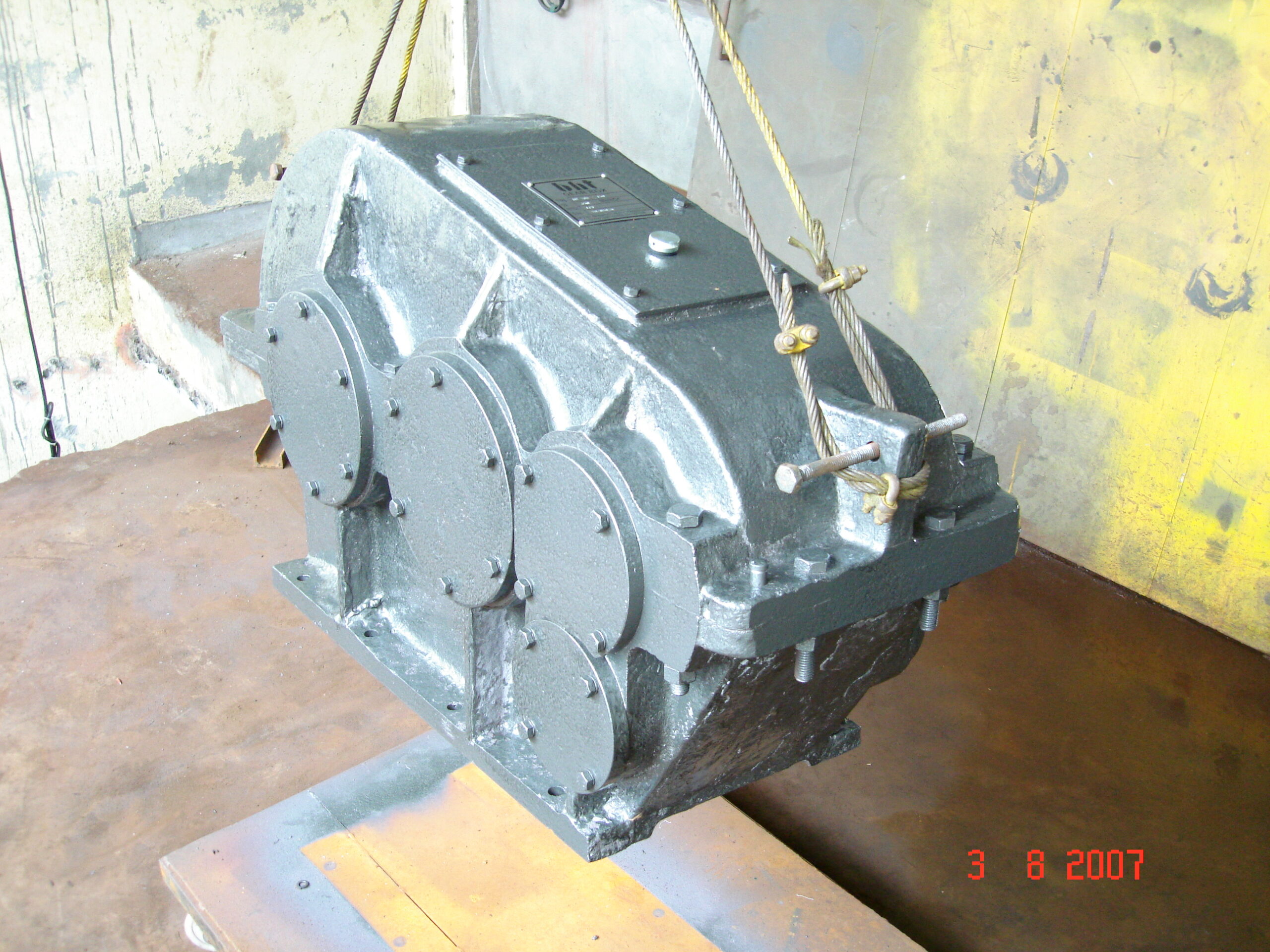

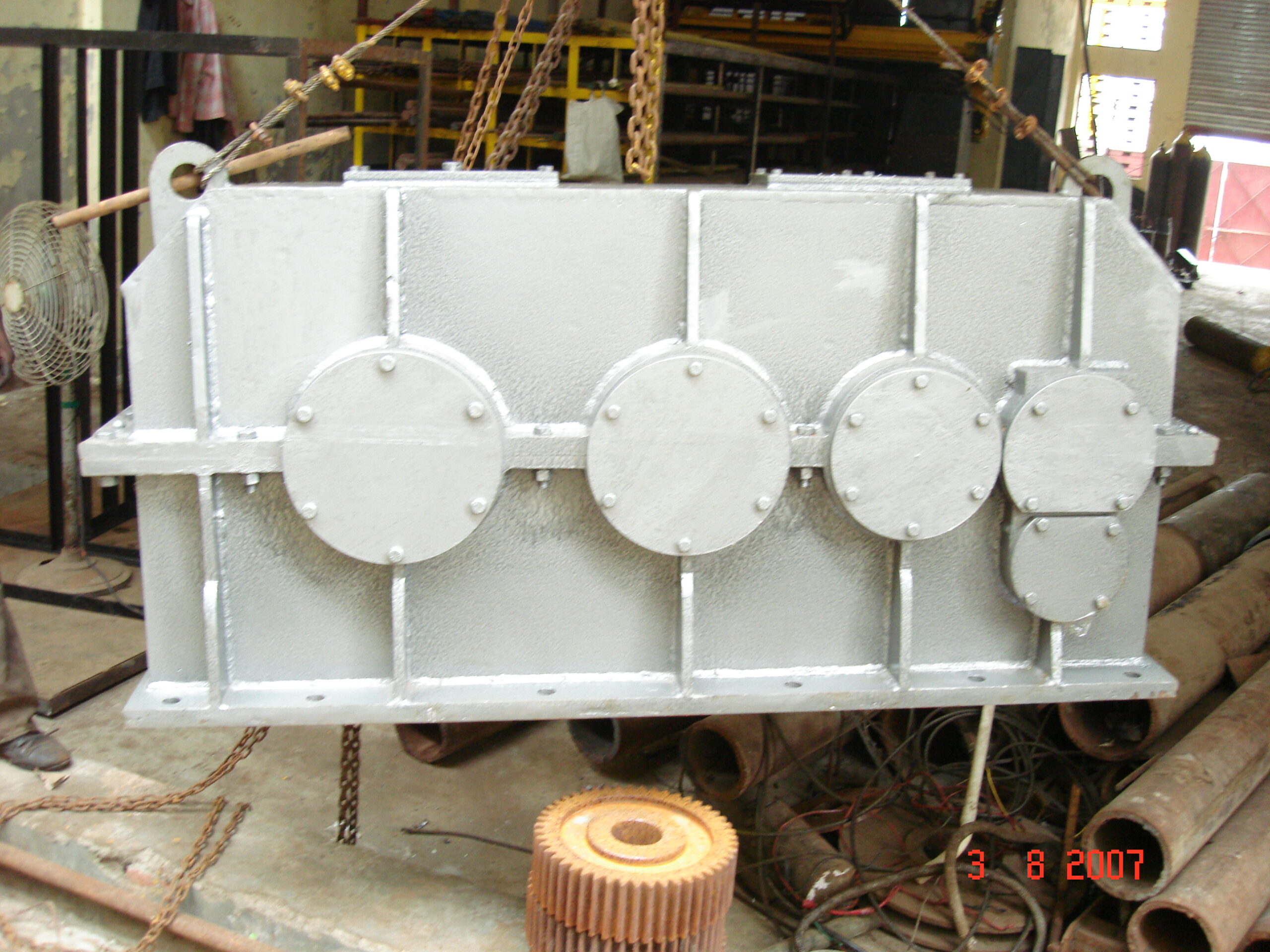

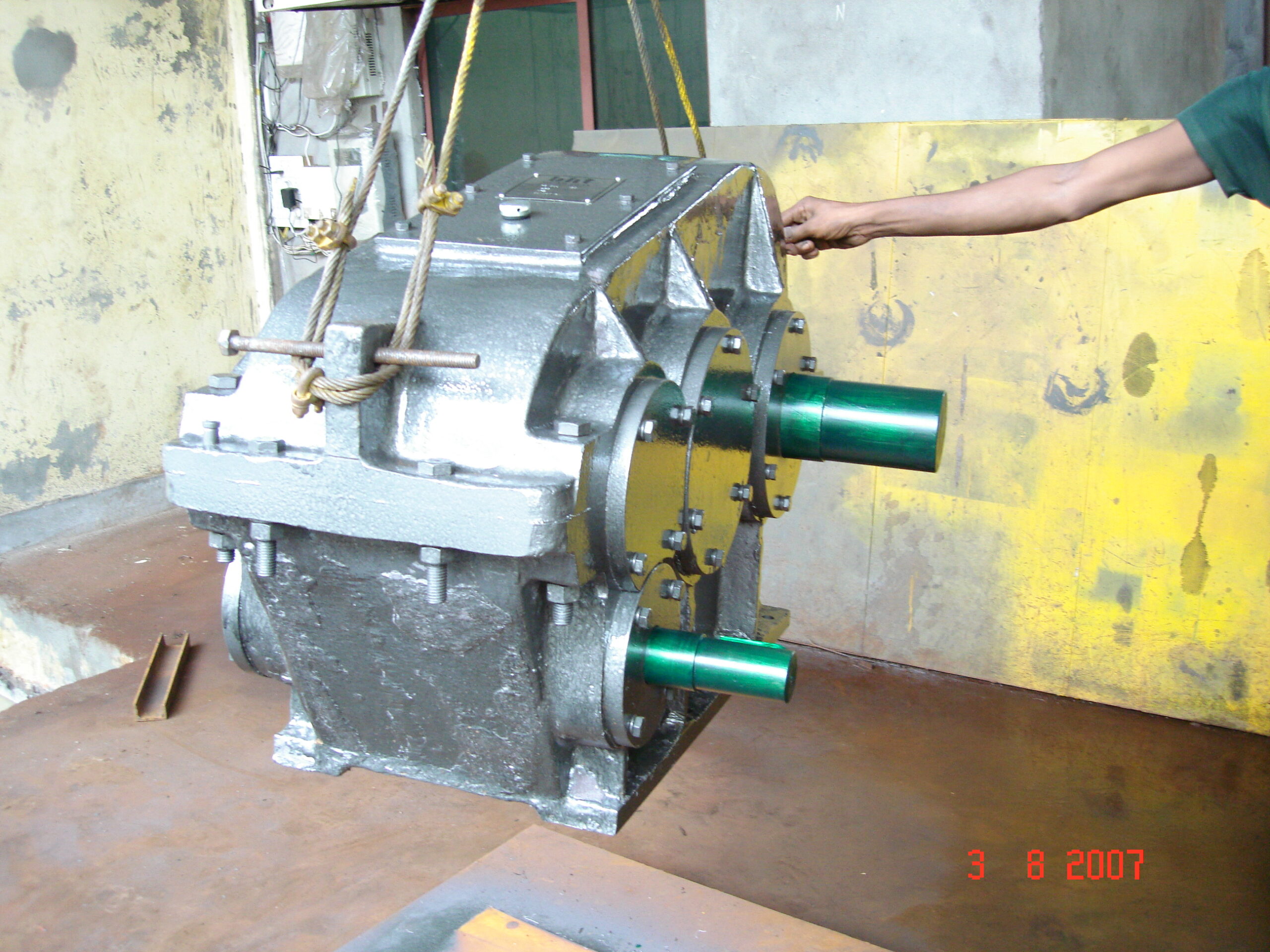

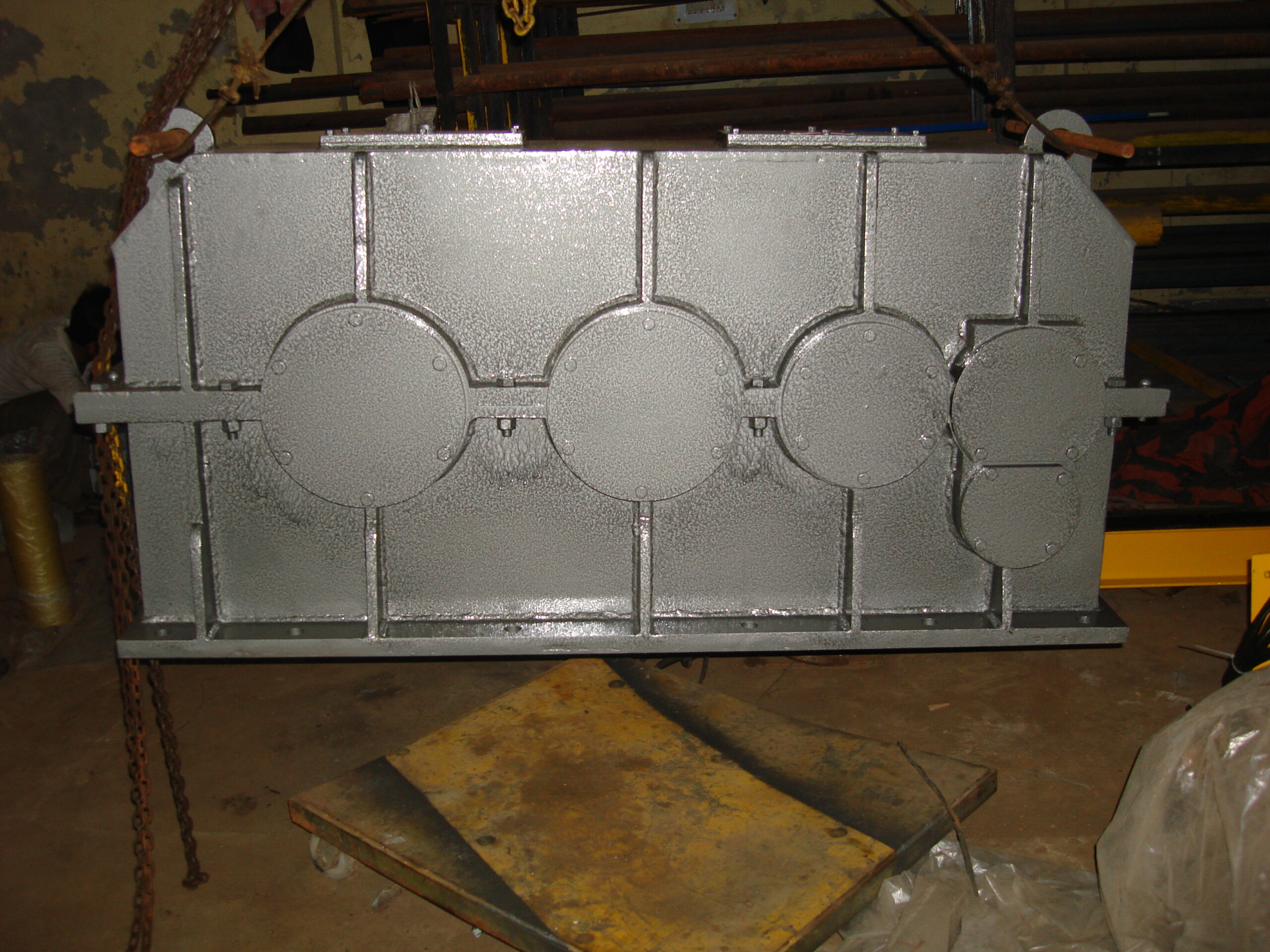

Helical Gear Box
The BHT-Series Modular Gear Units from Bhagirath Heavy Transmission are engineered with cutting-edge technology and decades of manufacturing expertise. Designed under the modular design principle, our gearboxes offer high efficiency, compactness, and easy serviceability—ideal for demanding industrial applications.
Design & Construction Highlights
- Modular Design Principle:
Gear sizes, transmission ratios, and dimensions follow standard series for efficient mass production and rapid delivery cycles. - Material & Build:
- Gear components are made from case-hardened steels of highest strength

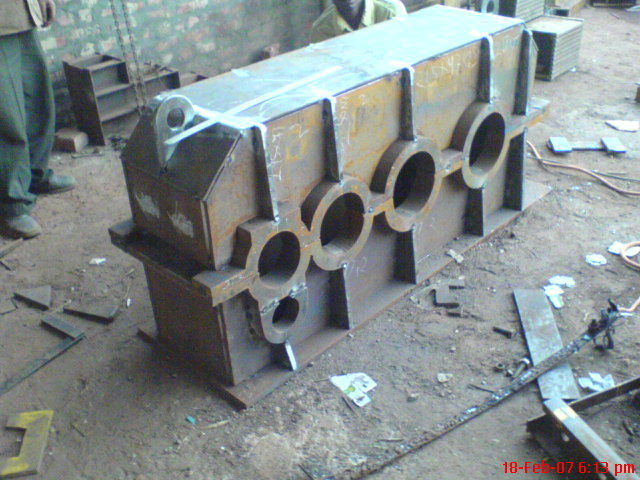

- Housings are constructed from vibration-damping grey cast iron and MS Steel Plate Fabricated duly stress Relived
- Bearings are amply dimensioned for long service life
- Gear profiles include ground helical gears and lapped spiral bevel gears for smooth, quiet performance
- Machining & Quality Control:
Manufactured using state-of-the-art CNC machines and continuously monitored through high-precision measuring instruments to ensure perfect alignment and tolerance.
Technical Specifications
| Efficiencies | Operating Conditions | Mounting Options |
|---|---|---|
|
• 99% – Single reduction helical gearboxes • 98% – Double reduction helical gearboxes • 97.5% – Triple reduction helical gearboxes • 97% – Quadruple reduction helical gearboxes |
Power ratings are based on: • Electric motor drive • Smooth operation for 8 hours/day • Ambient temperature of 20°C • 2.5× starting torque relative to nominal rating • 100% duty cycle |
• Standard horizontal mounting • Inclined installation possible on request • Users must ensure protective covers for rotating parts |
Noise Levels (dB)
Gearbox Type | Noise Level |
CI (Cast Iron) Housing | 85 dB |
Fabricated Steel Housing | 90 dB |
With Fan/Built-in Pump | +5 dB extra |
Housing & Accessories
- Material Options:
- Grey Cast Iron (standard)
- Fabricated Steel (optional)
- Optional Add-ons:
- Heating cartridges for low-temperature environments
- Special seals for dusty or humid conditions
- Reinforced bearings for high external loads such as pinion-driven output
- Oil Quantities & Dimensions:
- Oil capacities and weights provided are average values
- Refer to oil level indicators during filling
- Dimensions are subject to change without prior notice
Key Advantages of BHT Gear Boxes
- High transmission efficiency
- Low noise and smooth operation
- Compact and lightweight design
- Long service life with minimal maintenance
- Ready stock and fast delivery
- Designed for ease of assembly and servicing
