Underslung EOT Crane
Underslung EOT Crane

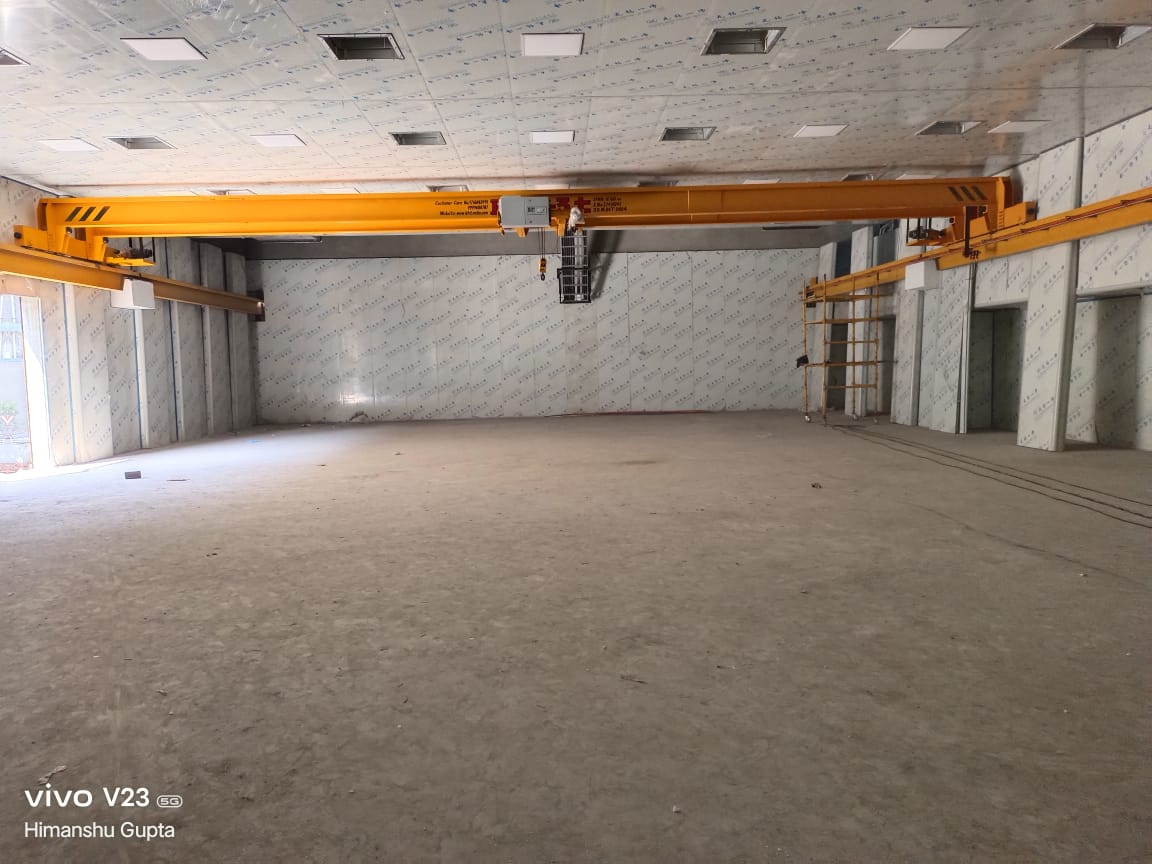

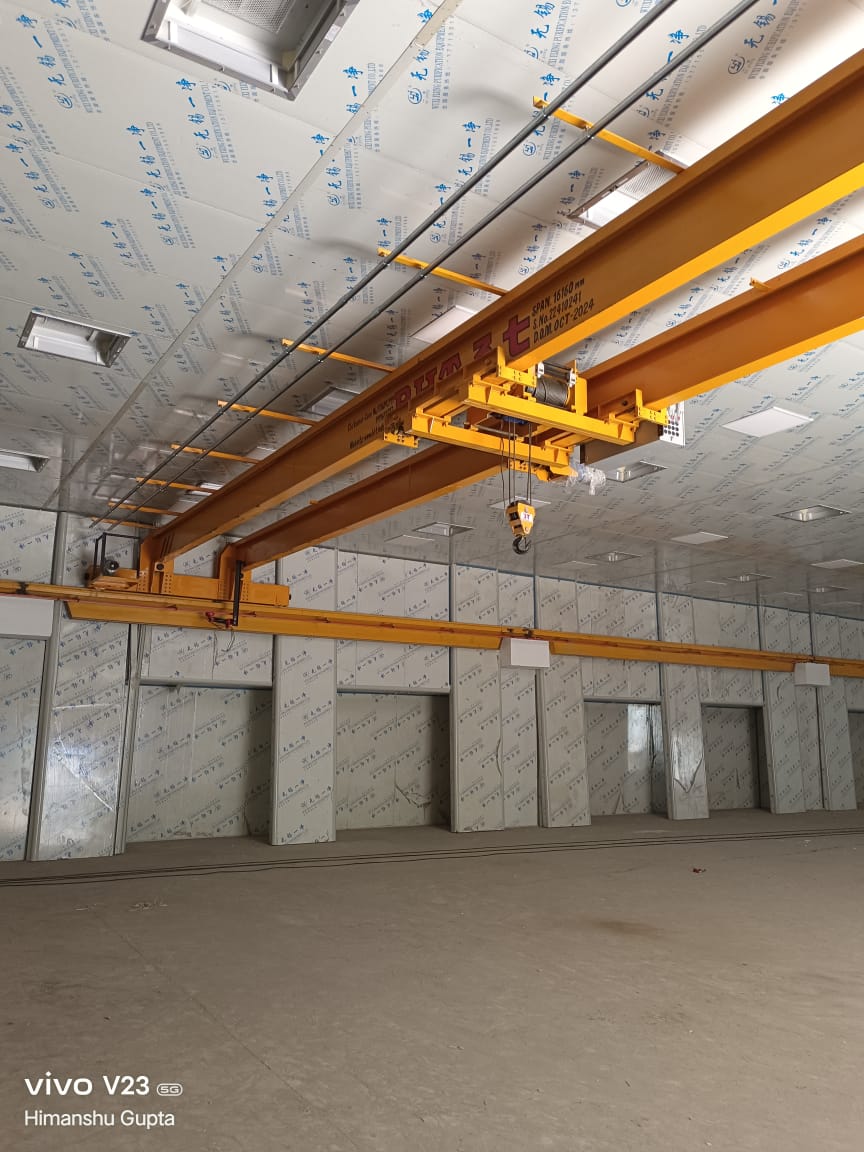

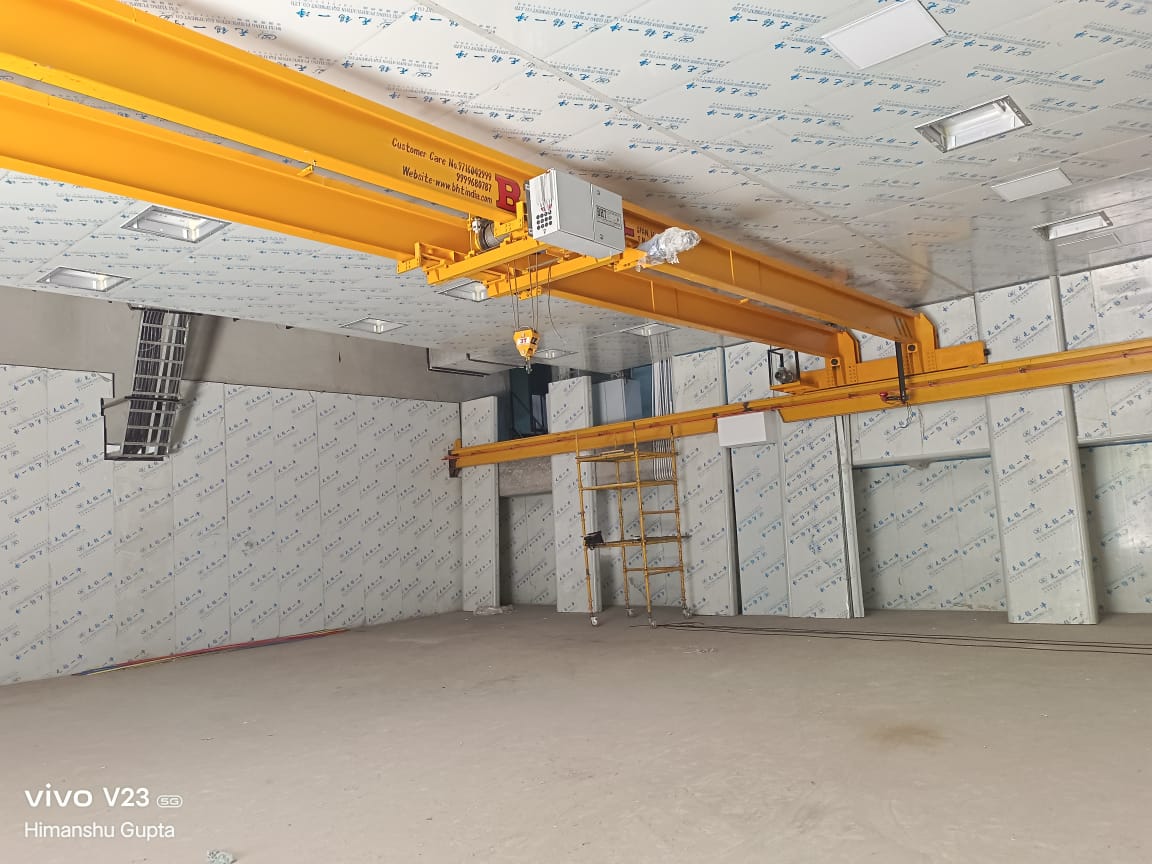

An Underslung EOT (Electric Overhead Travelling) Crane, also known as a suspension crane, is designed so that its bridge is suspended from the building’s roof structure or beams rather than being supported by floor-mounted columns. This unique arrangement makes it the perfect solution for facilities where floor space must be kept clear, headroom is limited, or installing traditional crane runways is not feasible.
Space-Saving Design
The suspended structure allows the crane to travel beneath the runway beams, making full use of the available height and keeping the entire floor area free from obstructions. This design is especially beneficial in production halls, warehouses, or workshops where ground-level movement and storage need to remain unhindered.
Key Features
- Suspended Bridge Design: Runs directly from the building’s existing support structure.
- Compact Footprint: No floor columns required, keeping space open for other operations.
- Flexible Configuration: Available in single-girder or double-girder designs to suit different lifting needs.
- Smooth Operation: Designed for precise load handling and efficient travel along the entire span.
- Customizable: Can be built for specific spans, lifting capacities, and lift heights.
Advantages
- Maximizes Usable Space: Ideal for low headroom buildings or facilities with structural constraints.
- Enhanced Workflow: Floor space remains completely clear for other machinery, vehicles, or storage.
- Adaptable Installation: Can be fitted to different types of building frameworks without major modifications.
- Safe & Controlled Lifting: Provides accurate movement even in narrow or congested spaces.
Where They Are Used
Underslung EOT cranes are commonly found in industries and environments such as:
- Assembly Lines: For moving components between workstations efficiently.
- Light Manufacturing Units: Where structural limits prevent installing heavy-duty runways.
- Warehouses: For material handling in spaces with minimal headroom.
- Maintenance Facilities: Where mobility and free floor space are essential.
- Specialized Structures: Such as aircraft hangars or buildings with complex layouts.
